Profile

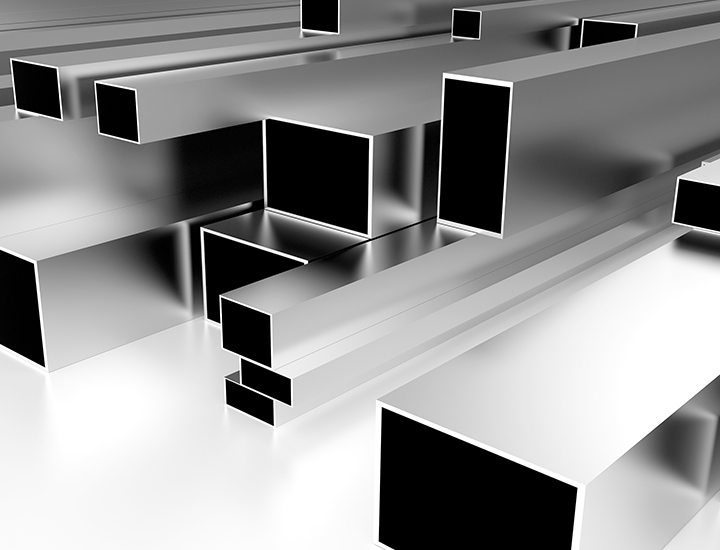

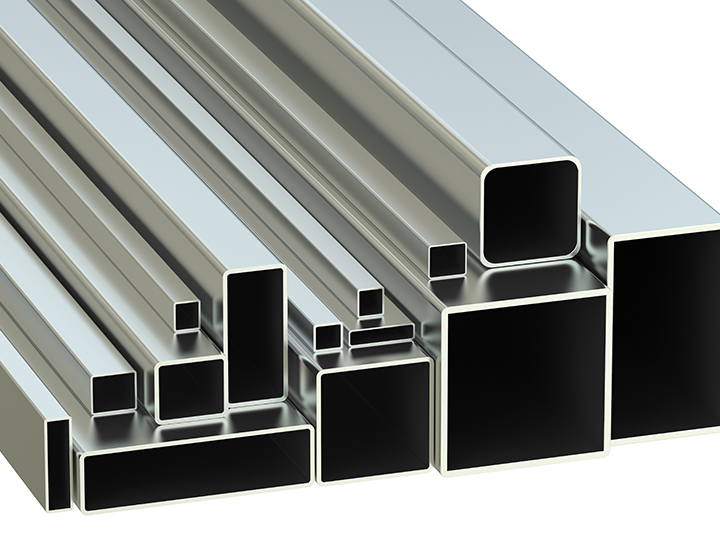

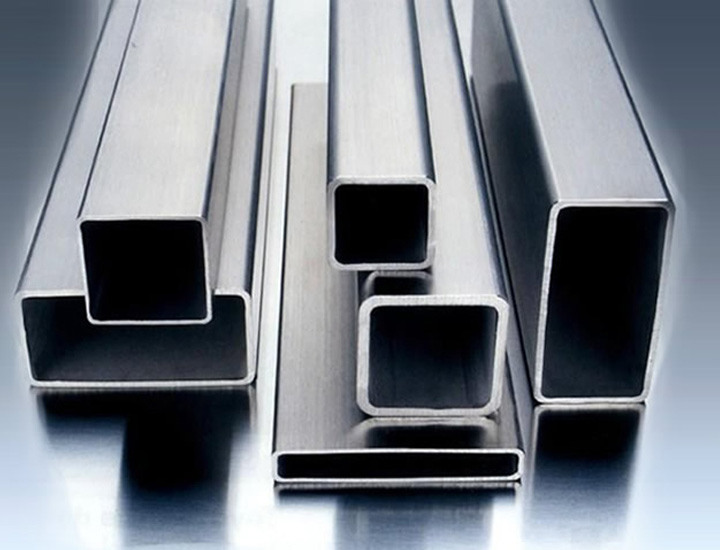

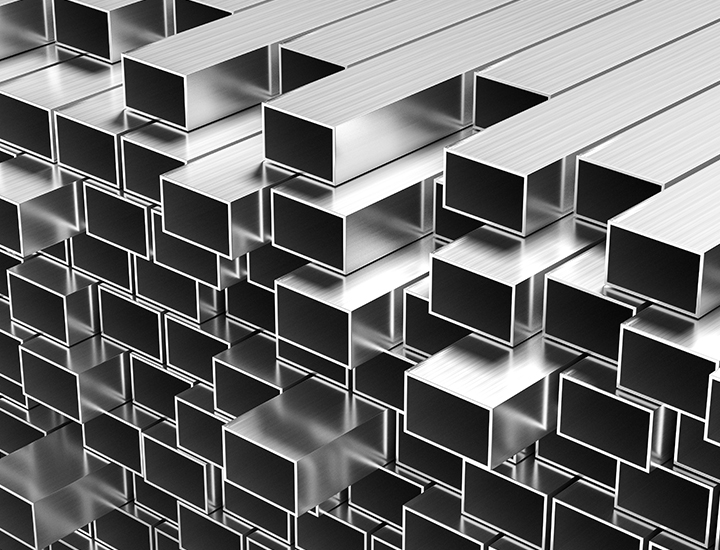

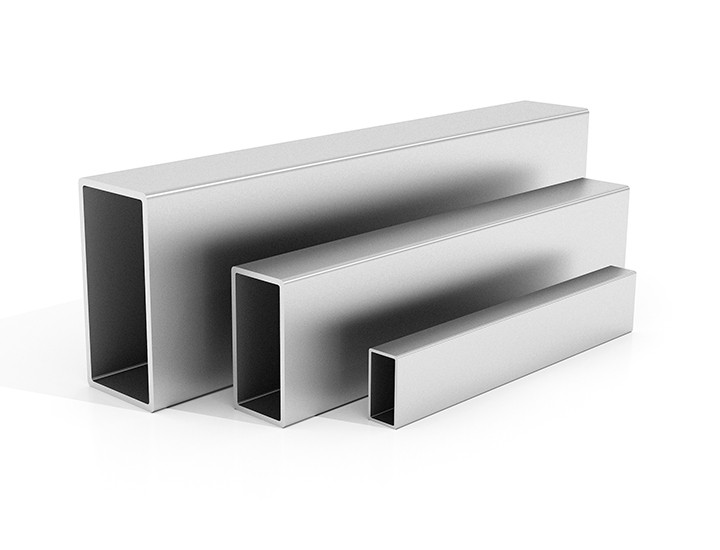

In our factory with a monthly production capacity of 750 tons, we are the only leading company in the sector capable of producing square profiles in all sizes between 10X10mm and 200X200mm and rectangular profiles in all sizes between 20x10mm and 100x200mm.

In all our profile productions, surface finishes include; 180 grit - 240 grit - 320 grit - 400 grit - 500 grit - 600 grit (Special surface work is also carried out upon requests from our customers).

Main qualities we produce:

AISI 304, AISI 304L (1.4301-1.4304), AISI 316, AISI 316L, (1.4401-1.4404), 316TI (1.4571), AISI 321 (1.4541), AISI 201, AISI 201J1, AISI 201J3, AISI 201J4,

Together with material qualities such as AISI 204, SAF 2205-1.4462 Duplex PIPE/PROFILE is specially produced in our factory. We have very important reference customers for the special production of 1.4462 grade Duplex. This product has excellent corrosion resistance.

According to the EN standard, this grade is named 1.4462 or X2CrNiMoN22-5-3, and according to the UNS standard, it is named S31803 or S32205.

 Our Production Standards: EN10217-7, EN10296-2, ASTM A554, ASTM A312,

Our Production Details
PROFILE SIZES: 10X10mm - 200X200mm
Wall Thickness Range: 0.5mm-8.00mm
Tolerance Class: ISO 1127:D4 / T3 (+-%0.5min +-1.0mm) (+-%10min +-0.2mm)
Test Class: TC1
Surface Finish: 180-240-320-400-500-600 Grit (special surface finishes are available upon customer request)
Annealing Unit: Fully Automatic Bright Annealing
Length Tolerance: (-0) (+5) mm
Length Range: L:1500mm - L:24000mm

Stainless Profile Weight Table

Stainless Square Profile Weights (mt/kg)
SQUARE TUBES ASTM A554
External Dimensions Wall Thickness mm
A x A mm 1 1,2 1,5 2 2,5 3 4 5
10 x 10 0,294 0,347 0,422
15 x 15 0,453 0,538 0,661 0,857
16 x 16 0,485 0,576 0,709 0,921
20 x 20 0,613 0,729 0,901 1,176
25 x 25 0,772 0,921 1,140 1,495 1,837 2,167
30 x 30 0,932 1,112 1,379 1,814 2,236 2,645
35 x 35 1,091 1,304 1,618 2,133 2,635 3,124
40 x 40 1,251 1,495 1,858 2,452 3,033 3,602 4,703
45 x 45 1,410 1,686 2,097 2,771 3,432 4,081 5,341
50 x 50 1,570 1,878 2,336 3,090 3,831 4,559 5,979 7,349
60 x 60 1,889 2,261 2,814 3,728 4,628 5,516 7,255 8,943
70 x 70     3,293 4,366 5,426 6,473 8,531 10,538
80 x 80     3,771 5,004 6,223 7,430 9,807 12,133
100 x 100 3,165 3,792 4,728 6,279 7,818 9,344 12,359 15,323
120 x 120       7,555 9,413 11,258 14,910 18,513
150 x 150       9,469 11,805 14,129 18,738 23,298
200 x 200       12,659 15,793 18,913 25,118 31,272

Stainless Rectangular Profile Weights (mt/kg)
RECTANGULAR TUBES ASTM A554
External Dimensions Wall Thickness mm
A x B mm 1 1,2 1,5 2 2,5 3 4 5
20 x 10 0,453 0,538 0,661
20 x 15 0,533 0,634 0,781 1,016
25 x 10 0,533 0,634 0,781 1,016
25 x 15 0,613 0,729 0,901 1,176
30 x 10 0,613 0,729 0,901 1,176
30 x 15 0693 0,825 1,020 1,335
30 x 20 0,772 0,921 1,140 1,495 1,837 2,167
35 x 20 0,852 1,017 1,259 1,654 2,036 2,406
40 x 10 0,772 0,921 1,140 1,495 1,837 2,167
40 x 15 0,852 1,017 1,259 1,654 2,036 2,406
40 x 20 0,932 1,112 1,379 1,814 2,236 2,645
40 x 30 1,091 1,304 1,618 2,133 2,635 3,124
50 x 10 0,932 1,112 1,379 1,814 2,236 2,645
50 x 20 1,091 1,304 1,618 2,133 2,635 3,124
50 x 25 1,171 1,399 1,738 2,292 2,834 3,363
50 x 30 1,251 1,495 1,858 2,452 3,033 3,602
50 x 40 1,410 1,686 2,097 2,771 3,432 4,081
60 x 10 1,091 1,304 1,618 2,133 2,635 3,124
60 x 20 1,251 1,495 1,858 2,452 3,033 3,602
60 x 30 1,410 1,686 2,097 2,771 3,432 4,081
60 x 40   1,858 2,336 3,090 3,831 4,559 5,979
80 x 20     2,336 3,090 3,831 4,559 5,979
80 x 30     2,575 3,409 4,229 5,038 6,617
80 x 40     2,814 3,728 4,628 5,516 7,256 8,943
80 x 50     3,054 4,047 5,027 5,995 7,893 9,741
80 x 60     3,293 4,366 5,426 6,473 8,531 10,538
100 x 40     3,293 4,366 5,426 6,473 8,531 10,538
100 x 50     3,532 4,685 5,824 6,952 9,169 11,336
100 x 60     3,771 5,004 6,223 7,430 9,807 12,133
100 x 80     4,250 5,641 7,021 8,387 11,083 13,728
120 x 40     3,771 5,004 6,223 7,430 9,807 12,133
120 x 60     4,250 5,641 7,021 8,387 11,083 13,728
120 x 80     4,728 6,279 7,818 9,344 12,359 15,323
150 x 50       6,279 7,818 9,344 12,359 15,323
150 x 100       7,874 9,812 11,736 15,548 19,310
160 x 80       7,555 9,413 11,258 14,910 18,513
200 x 100       9,469 11,805 14,129 18,738 23,298
