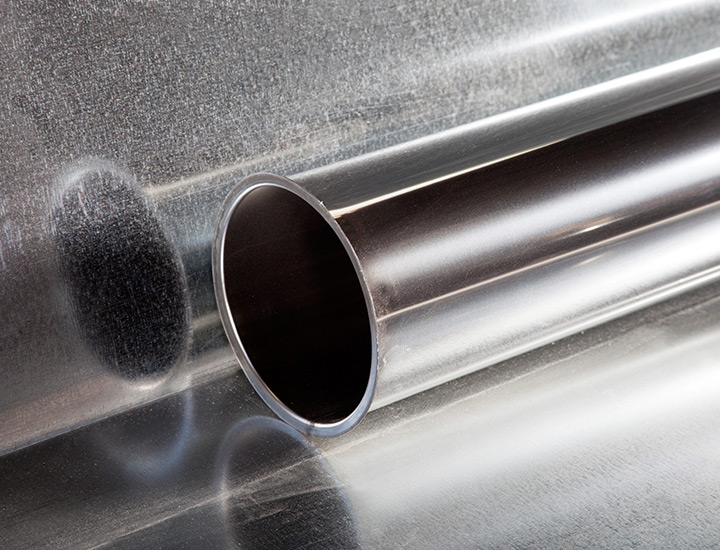

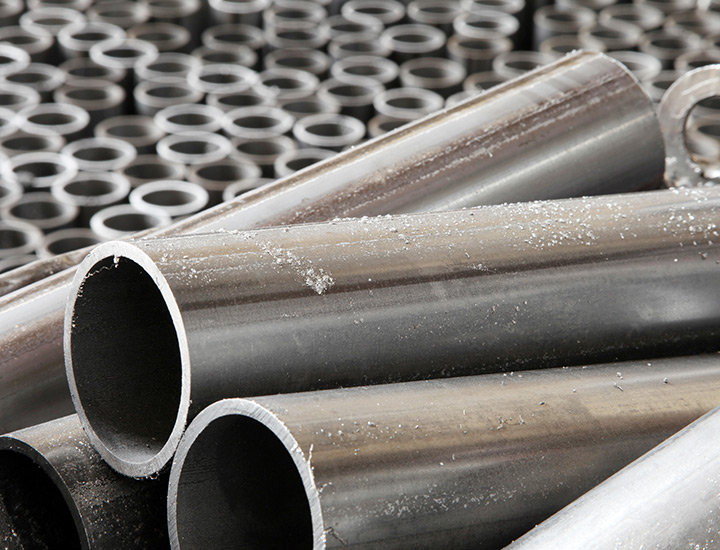

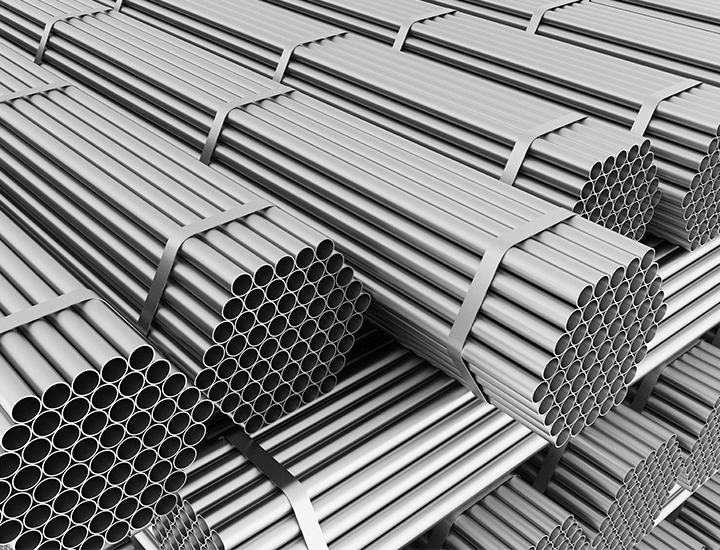

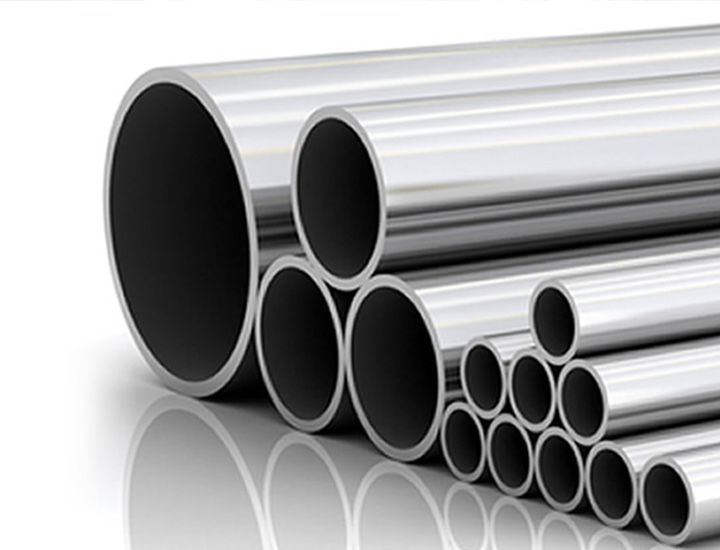

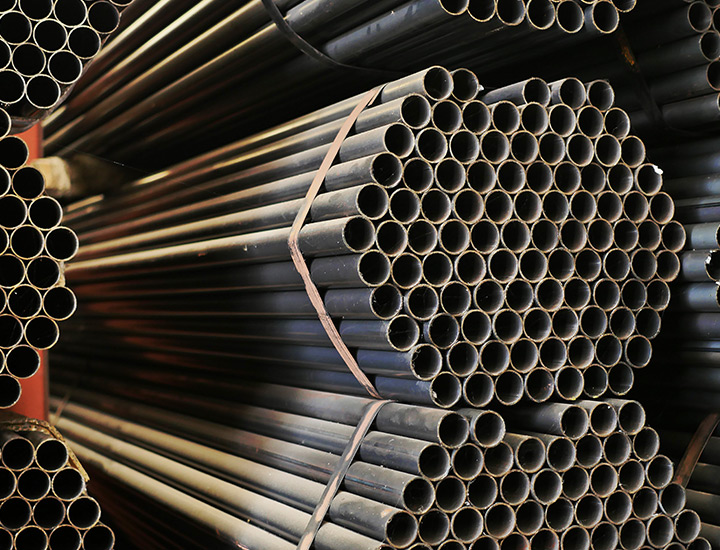

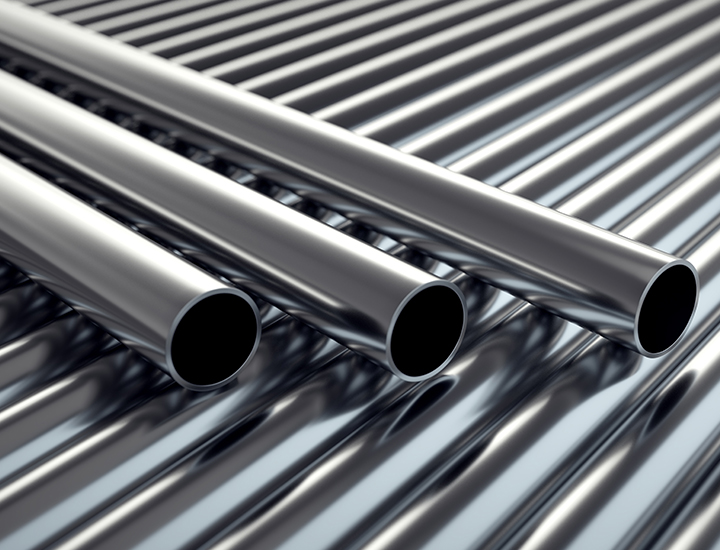

Pipe



Main grades we produce:
AISI 304, AISI 304L (1.4301-1.4304), AISI 316, AISI 316L (1.4401-1.4404), 316TI (1.4571), AISI 321 (1.4541), AISI 201, AISI 201J1, AISI 201J3, AISI 201J4,
AISI 204. Along with these material grades, SAF 2205-1.4462 Duplex pipes/profiles are specially manufactured in our factory. We have very important reference customers for whom we produce 1.4462 grade Duplex as a special production. This product has excellent corrosion resistance.
This grade is referred to as 1.4462 or X2CrNiMoN22-5-3 according to EN standards, and as S31803 or S32205 according to UNS standards.

Our Production Standards: EN10217-7, EN10296-2, ASTM A554, ASTM A312


Our Production Details
Pipe Outer Diameter Range Ø8mm - Ø323.9mm OD
Wall Thickness Range 0.5mm - 8.00mm
Tolerance Class ISO 1127: D4 / T3 (±0.5min ±1.0mm) (±10min ±0.2mm)
Test Class TC1
Surface Finish 180-240-320-400-500-600 Grit (special surface finishing is carried out according to customer requests)
Annealing Unit Fully Automatic Bright Annealing
Length Tolerance (-0) (+5) mm
Length Range L:1500mm - L:24000mm

Stainless Steel Pipe Weight Table

Stainless Steel Pipe Weights (mt/kg)
ROUND TUBES EN 10217-7
EN 10296-2
Outside Diameter
OD mm
Wall Thickness mm
0,80 1 1,2 1,5 2 2,5 2,6 3 3,6 4 5
8
 0,144 0,175
10
 0,184 0,225 0,264 0,319
12
 0,224 0,275 0,325 0,394 0,501
14
 0,264 0,326 0,385 0,470 0,601
15
 0,284 0,351 0,415 0,507 0,651
16
 0,304 0,376 0,445 0,545 0,701
18
 0,345 0,426 0,505 0,620 0,801 0,970 1,003 1,127
19
 0,365 0,451 0,535 0,657 0,851 1,033 1,068 1,202
19,05
 0,366 0,452 0,536 0,659 0,854 1,036 1,071 1,206
20
 0,385 0,476 0,565 0,695 0,901 1,096 1,133 1,277
21,3
 0,411 0,508 0,604 0,744 0,967 1,177 1,217 1,375
22
 0,425 0,526 0,625 0,770 1,002 1,221 1,263 1,427
23
 0,445 0,551 0,655 0,808 1,052 1,283 1,328 1,502
24
 0,465 0,576 0,685 0,845 1,102 1,346 1,393 1,578
25
 0,485 0,601 0,715 0,883 1,152 1,409 1,458 1,653
25,4
 0,493 0,611 0,727 0,898 1,172 1,434 1,484 1,683
26,9
 0,523 0,649 0,772 0,954 1,247 1,527 1,582 1,795
28
 0,545 0,676 0,805 0,995 1,302 1,596 1,654 1,878
30
 0,585 0,726 0,865 1,070 1,402 1,722 1,784 2,028
31,80
 0,621 0,771 0,919 1,138 1,492 1,834 1,901 2,163
32
 0,625 0,776 0,925 1,146 1,502 1,847 1,914 2,178
33
 0,645 0,801 0,956 1,183 1,552 1,909 1,979 2,254
33,7
 0,659 0,819 0,977 1,209 1,588 1,953 2,025 2,306
34
 0,665 0,826 0,986 1,221 1,603 1,972 2,044 2,329
35
 0,685 0,851 1,016 1,258 1,653 2,035 2,109 2,404
38
 0,745 0,926 1,106 1,371 1,803 2,222 2,305 2,629 3,101 3,405
40
 0,785 0,977 1,166 1,446 1,903 2,348 2,435 2,779 3,281 3,606
41
   1,002 1,196 1,484 1,953 2,410 2,500 2,855 3,371 3,706
42
   1,027 1,226 1,521 2,003 2,473 2,565 2,930 3,462 3,806
42,4
   1,037 1,238 1,536 2,023 2,498 2,591 2,960 3,498 3,846
43
   1,052 1,256 1,559 2,053 2,535 2,630 3,005 3,552 3,906
44,5
   1,089 1,301 1,615 2,128 2,629 2,728 3,117 3,687 4,056
45
   1,102 1,316 1,634 2,153 2,661 2,760 3,155 3,732 4,107
48
   1,177 1,406 1,747 2,304 2,848 2,956 3,380 4,002 4,407
48,3
   1,184 1,415 1,758 2,319 2,867 2,975 3,403 4,029 4,437
50
   1,227 1,466 1,822 2,404 2,974 3,086 3,531 4,183 4,607
50,8
   1,247 1,490 1,852 2,444 3,024 3,138 3,591 4,255 4,687
51
   1,252 1,496 1,859 2,454 3,036 3,151 3,606 4,273 4,708
52
   1,277 1,526 1,897 2,504 3,099 3,216 3,681 4,363 4,808
53
   1,302 1,556 1,934 2,554 3,161 3,281 3,756 4,453 4,908
54
   1,327 1,587 1,972 2,604 3,224 3,346 3,831 4,543 5,008
55
   1,352 1,617 2,009 2,654 3,287 3,411 3,906 4,633 5,108
60,3
   1,485 1,776 2,209 2,920 3,618 3,757 4,304 5,111 5,639 6,924
63,5
   1,565 1,872 2,329 3,080 3,819 3,965 4,545 5,400 5,960 7,324
70
   1,728 2,067 2,573 3,405 4,226 4,388 5,033 5,986 6,611 8,138
76,1
   1,881 2,251 2,802 3,711 4,607 4,785 5,491 6,535 7,222 8,902
88,9
     2,635 3,283 4,352 5,409 5,618 6,453 7,689 8,504 10,504
101,6
       3,760 4,988 6,204 6,445 7,407 8,834 9,776 12,094
114,3
      4,237 5,624 6,999 7,272 8,361 9,979 11,048 13,684
127
       4,714 6,260 7,794 8,099 9,315 11,124 12,320 15,274
129
       4,789 6,360 7,919 8,229 9,465 11,304 12,520 15,525
139,7
       5,191 6,896 8,589 8,926 10,269 12,269 13,592 16,864
153
       5,690 7,562 9,421 9,792 11,268 13,468 14,924 18,530
154
       5,728 7,612 9,484 9,857 11,343 13,558 15,024 18,655
155
       5,765 7,662 9,547 9,922 11,418 13,648 15,124 18,780
156
       5,803 7,712 9,609 9,987 11,493 13,738 15,224 18,905
159
       5,916 7,863 9,797 10,182 11,719 14,008 15,525 19,281
168,3
       6,265 8,328 10,379 10,788 12,417 14,847 16,456 20,445
219,1
         10,872 13,559 14,095 16,233 19,426 21,544 26,805
254
         12,620 15,744 16,367 18,855 22,572 25,040 31,175
255
         12,670 15,807 16,432 18,930 22,662 25,140 31,300
256
         12,720 15,869 16,497 19,005 22,752 25,240 31,425
273
         13,572 16,933 17,604 20,282 24,285 26,943 33,554
323,9
         16,121 20,120 20,918 24,106 28,873 32,041 39,926
406,4
         20,252 25,284 26,289 30,303 36,310 40,304 50,255
506,0
               37,790   50,280 62,730
508,0
               37,940   50,480 63,980
